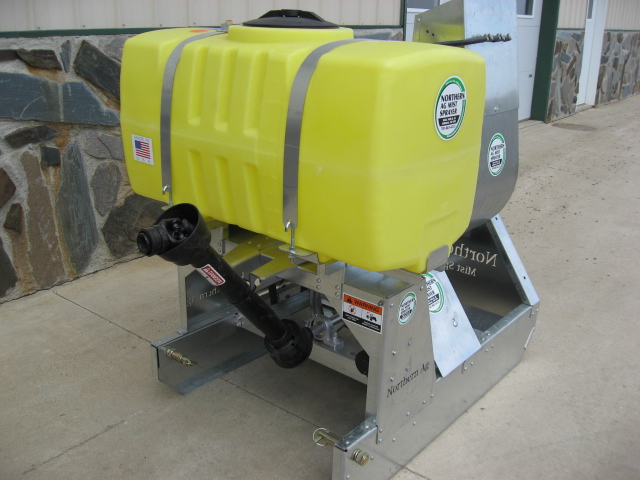

3P PTO Driven Mist Blower

3 Point Mist Blower 50 Gal. Unit Dimensions 54" L 40" W 55" H

                              100 Gal. Unit Dimensions 53" L 40" W 64" H

Image title

Northern Ag Mist Sprayers or Mist Blowers feature 10 gauge galvanized steel construction, The result is no paint to peel or rust. Spray up to 160 feet without Booms.

Fan rotation 210 degrees from side to side so you can spray either left or right or any angle in between with hydraulic or 12 volt electric actuator. Compatible with category I or II hitch pins.

50 or 100 gallon PCO tanks, 4 & 7 roller or 12 Volt Diaphragm pump. Construction includes 12 inch fan with crimped safety rings,

Easy fill & easy cleaning standard 50 gallon PCO tank. Optional 100 gallon PCO tank available, Oil filled Pressure gauge, electric on and off Flow control Valve. Pressure regulator on all standard equipment.

Mist sprayers use 1/10 the water compared to a boom sprayer, Mist Sprayers provide one of the most efficient ways of applying chemicals with more uniform coverage at a much lower cost compared to other application methods.

Get Uniform Distribution WITHOUT BOOMS! •Vegetable/Fruit Spraying - Sweet Corn - Pumpkins - Tomatoes - Strawberrys - Watermelons - Cucumbers •Wind Breaks - Road Ditches - Ravines - Brush - Trees •Pasture and Range Control - Livestock and Insect Control •Fly Control - Mosquito Control {West Nile Virus} •Broadcast and Row Crop Use - Vineyard and Orchards •Spray Insecticides - Herbicides and Fungicides •Foliar Fertilizer Applications. This is the most efficient way of applying chemicals. ALL WITHOUT BOOMS!

Options On Eqipment

  • Hydraulic Cylinder
  • 12 Volt Actuator (Optional)
  • 100 Gal. Tank (Optional)
  • Fan Safety Rings
  • Heavy PTO Shaft
  • Lift Hooks
  • Galvanized Frame
  • Pressure Gauge
  • Roller or 12-volt Diaphragm Pumps
  • 7 Roller Pump (Optional)
  • Category I And II Hitch pins
  • Hydraulic Hoses (Optional)
  • Pioneer Hose Ends (Optional)

Click on any picture below for larger view:
